IBFM Art. 745/0S2 Cerniera Pesante a cuscinetti per profili Secco OS2-65 e OS2-75

Informazioni aggiuntive

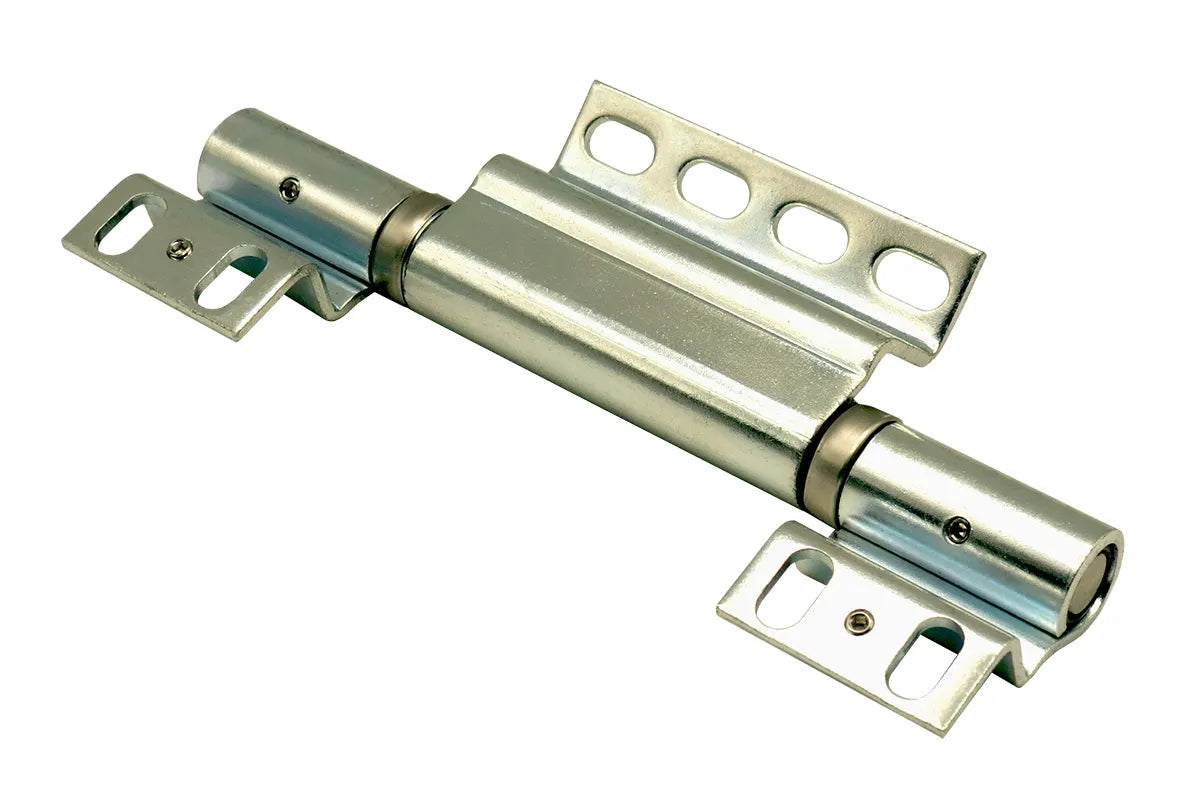

Heavy duty hinge with ball bearings suitable for Secco profiles. Suitable to be installed on heavy doors, security doors, fire and smoke-proof doors, entrance doors. The installation process is made easy thanks to screwing on the front part of the frame and of the door. This allows also an easy maintenance and eventual substitution. The installation is performed thanks to screws, counterplates and eventually rivet nuts. On request possibility of customization of the sizes and finishing.

In order to obtain more carrying capacity is possible to use more than a pair of hinges, just paying attention to their vertical spacing and alignment. The carrying capacity is highly effected by the dimensions of the door leaf (width and height).
